Mini Metal Milling Machine For Iron Copper Steel Metal Mini Cnc Router 6090 Cast Iron Table Heavy Body

$2,700.00 USD

~~$1,365.00 USD~~ $2,700.00 USD

Sale Sold out

Size Balance payment Advance payment

Color SKY BLUE

Ships From CHINA

Quantity

SPECIFICATIONS

Brand Name: rakoncnc

CNC or Not: CNC

Certification: CE

Condition: New

Control system: Nc studio; A11 DSP

Controller: MACH3

Hign-concerned Chemical: None

Is Smart Device: YES

Key words: Mini Metal Milling Machine For Iron Copper Steel Metal Mini Cnc Router 6090 Cast Iron Table Heavy Body

Model: Rakoncnc RC Series

Model Number: RCM6090

Motor: Stepper motor

Origin: Mainland China

Rail guide: Square

Spindle power: 1.5kw water cooling ( 0 - 24000rpm )

Transmit: X Y Z ball screw

Working precision: 0.05mm

Working speed: 0-15000mm/min

X,Y axis Working size: 600x900mm / 1200x1200mm

Z axis working size: 200mm standard ( customization optional )

Mini Metal Milling Machine For Iron Copper Steel Metal Mini Cnc Router 6090 Cast Iron Table Heavy Body

Jinan Rakoncnc Machinery Co., Ltd

Whatsapp:+86-15098848753

Email:beck@rakoncnc.com

https://www.rakoncnc.com

Products Parameter

Description	CNC Router Specifications
Model	Rakoncnc RC Series
X,Y axis Working size	600x900mm / 1200x1200mm
Z axis working size	200mm standard ( customization optional )
Control system	Nc studio; A11 DSP
Spindle power	1.5kw water cooling ( 0 - 24000rpm )
Motor	Stepper motor
Rail guide	Square
Transmit	X Y Z ball screw
Working speed	0-15000mm/min
Command code	HPGL, G code
Working precision	0.05mm
Power supply	AC 220/380V±10%, 50Hz/60Hz
Compatible software	Type3/Artcam/UG/Pro-E/Mastercam/Ucancam V9 etc
Optional parts	1. Change control system 2. Vacuum worktable 3. Rotary Clamp 4. Spindle power 5. Water tank(for metal and stone ) 6. Change to Cloose loop stepper motor or Japan Servo Motor

Why choose us

1 We are a real factory offering products.

2 Free technical advice by QUALIFIED MECHANICAL ENGINEERS.

3 Company in business for many years.

4 Over 50 countries customers served!

5 Buy direct saving your money!

6 All machine with CE, ISO, BV certificate.

7 Machine and spindle warranty 1 year.

8 Our engineer can go to your country to provide technical guidance

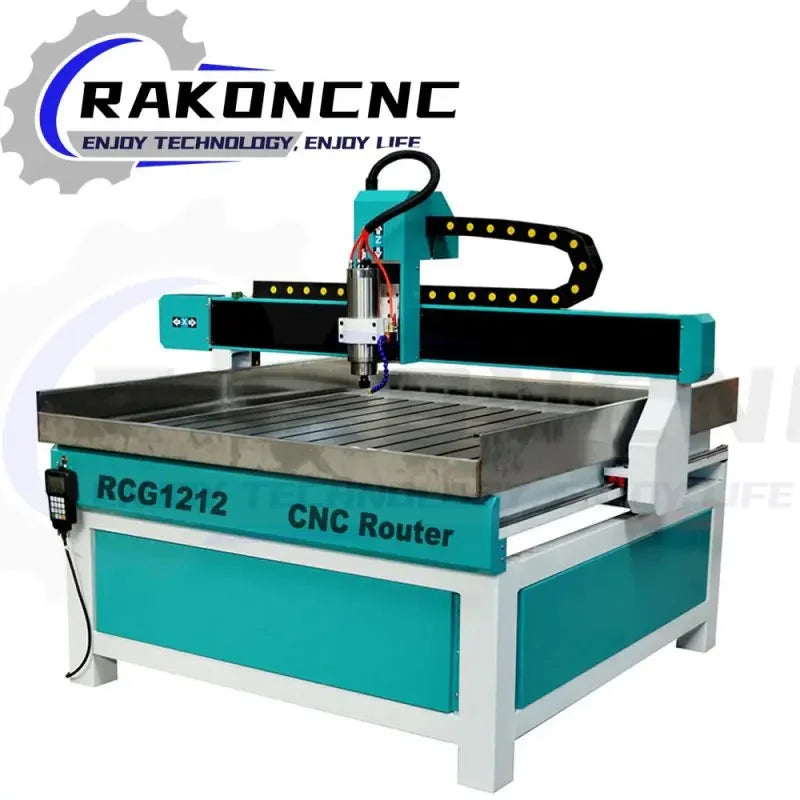

Product Features Of RCG1212 CNC ROUTER

1.Adopt imported square guide rail,double row slide block and the imported ball screw makes the machine working steadily,high precision and long life time.

2.With advanced DSP system,operated with the USB handle,convenient operation, humanization design.

3.High power spindle, brushless, water cooling, working vigbrously with low noise , guarantees long time mass processing.

4.Adopt high speed stepper motor and drivers and to motors for Y axis,max speed can reach to 35m/min,auto aligning system.

5.Compatible with type3/artcam/castmate/proe/coreldraw/wentai and other cad/cam software.

Products Description

Ball screw on all axis

There are three ball screws, one for each axis.Each ball screw is driven by a stepper motor and moves the router spindle in the X,Y and Z directions.

Taiwan square guide rails

The square rail is with higher stability and rigidity, which makes the gantry moving and spindle moving at high speed with high precision.

Machine body design

Ruggedly constructed machine structure. Material is Stress relieved and annealed for deformation free, thus always keep machine accurate. Machine base is produced by CNC machine, and machine base's five sides are produced at one same procession to make sure the machine body geometry tolerance is standard.

Water cooling spindle

1.5kw high frequency spindle,more powerful and less noise.With water cooling ,it will have long working life.

Sample Display

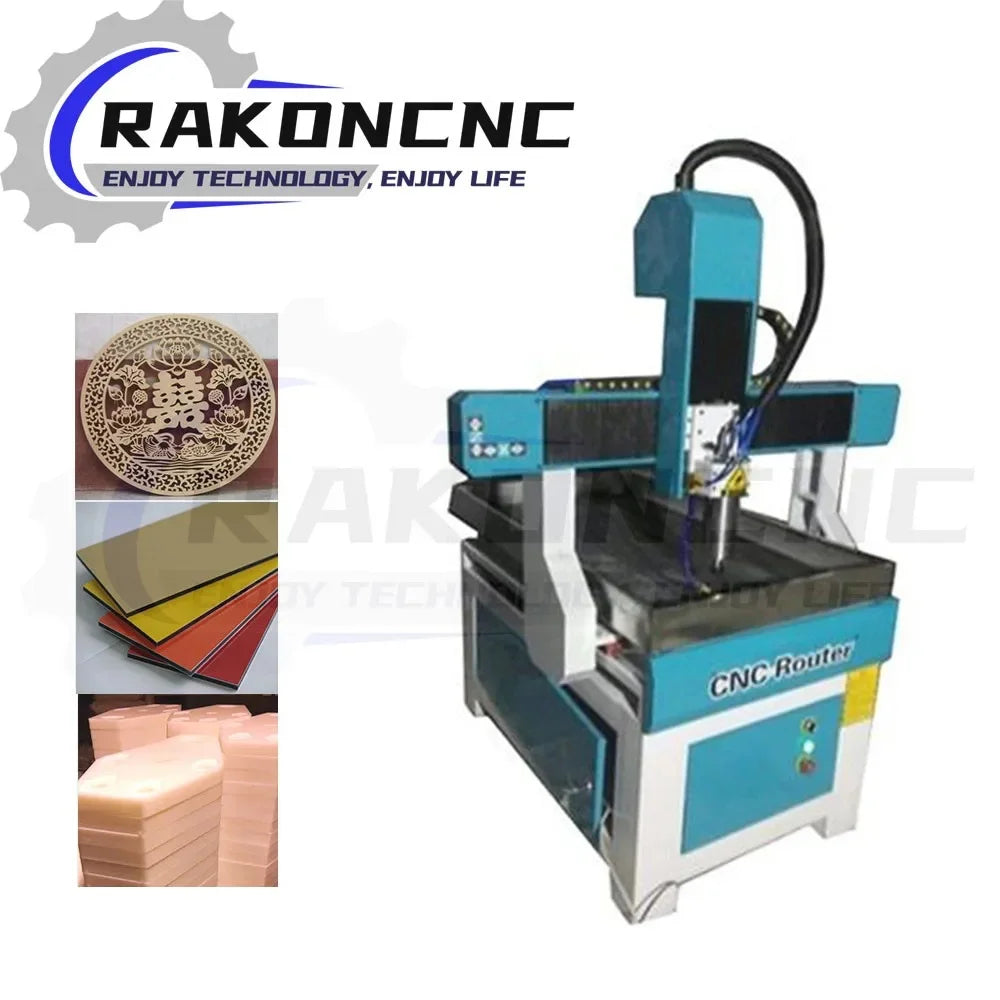

Application material

Wide range of application:

Such as seal, packing, scutcheon and pane, decorating, art and craft, architecture model, souvenir, badge, electric circuitry and carpentry field.

Suitable for Materials:

Engrave and cut on Acrylic sheet, ABS double color sheet, PVC foam sheet,wooden sheet, PCB Aluminum brass, steel etc.
