SPECIFICATIONS

Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction works , Energy & Mining

Brand Name: NoEnName_Null

Certification: ce,CE

Control System Brand: Cypcut

Cooling Mode: WATER COOLING

Cutting Speed: 160 m/min

Hign-concerned Chemical: None

Laser Type: Fiber Laser,Fiber Laser

Laser power: 1000w/1500w/2000w

Mode of Operation: continuous wave

Model Number: Fiber laser cutting machine

Origin: Mainland China

Product name: laser cutting machine

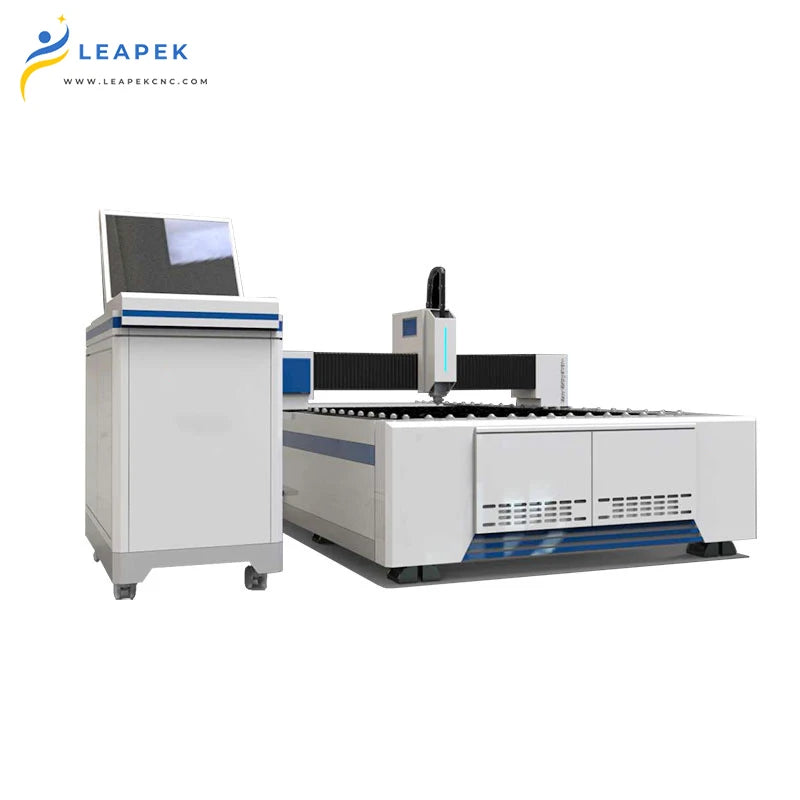

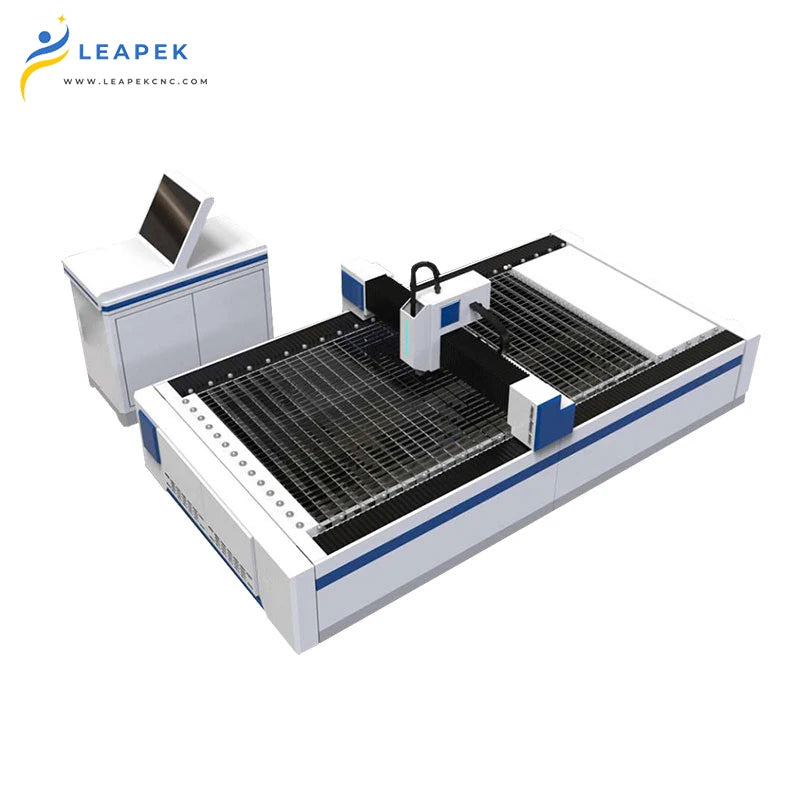

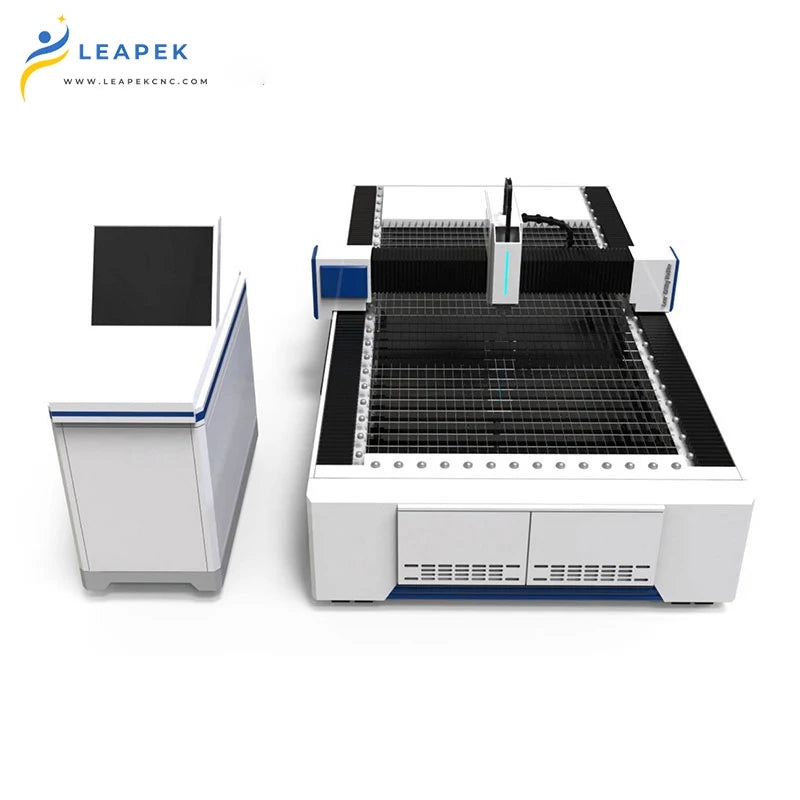

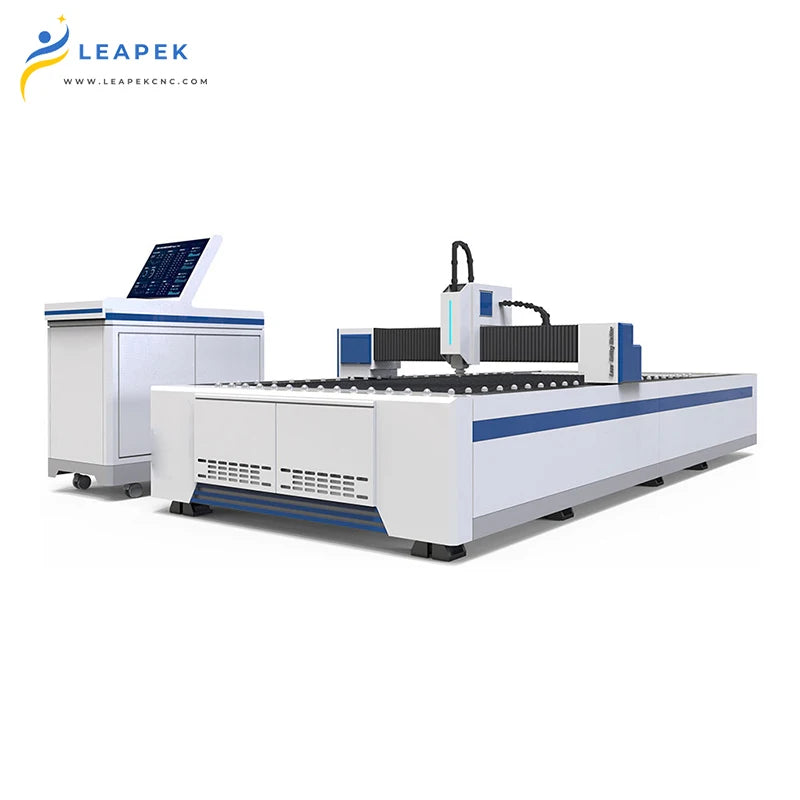

Fiber Laser cutting Machine

Fiber laser cutting machine is an efficient, fast and accurate technology, which is widely used in modern industrial production and manufacturing. Due to its high laser power, high speed, reliability and good cutting quality, it is widely used in automotive parts, mechanical parts, kitchen supplies, electronic products, building materials, daily necessities, LED lighting, medical equipment and other industries.

Machine details

1.Adopt industrial heavy-duty machine body with firm structure, treated by CNC high-temperature tempering and stress-relieving, ensuring no deformation after long-term use, suitable for high-powered laser source operation

2. The whole processing by CNC large-scale pentahedron machining center, including milling, drilling, tapping and other processes, can effectively improve the assembly accuracy of the machine body, and ensure the running progress and stability of the equipment.

3.Three axis adopts high-precision linear square guide rail to ensure smooth operation, having the features of wear-resistant and dust-proof, and is equipped with automatic oil lubrication system.

4. XY axis adopts high-precision grinding rack, Z-axis is equipped with high-precision grinding screw. The grinding gear and grinding screw ensure higher precision of the equipment.

5.XY axis is equipped with reducer, which is faster and more stable at high speed.

6.Using CYPCUT industrial optical fiber cutting system, supporting auto focus, material exchanging platform, scanning cutting, automatic edge cutting, etc.

7.Dual-screen display, self-contained monitoring device, could conduct in-time monitoring for working platform and switching platform; also have the function of warning protection

8.Adopting auto-focusing cutting head, quick response and high positioning accuracy

11.Equipped with large enclosed structure with integral fireproof steel material; having high safety level graphite platform in the processing are

12.Equipped with a partitioned smoke exhaust system to automatically switch the smoke exhaust district for better smoke evacuation

13.Equipped with high-speed and high-efficiency automatic material exchanging device in variable frequency drive, and is equipped with chain protection device

14. Optical fiber transmission, flexible processing, realizing equal quality cutting at any point.

MACHINE APPLICATION

Kitchenware industry, Fitness equipment application, Agricultural machinery, Elevator manufacturing,Elevator manufacturing, Furniture industry, Automobile manufacturing, Medical apparatus and instruments, Bicycle manufacturing, School tools, etc.
