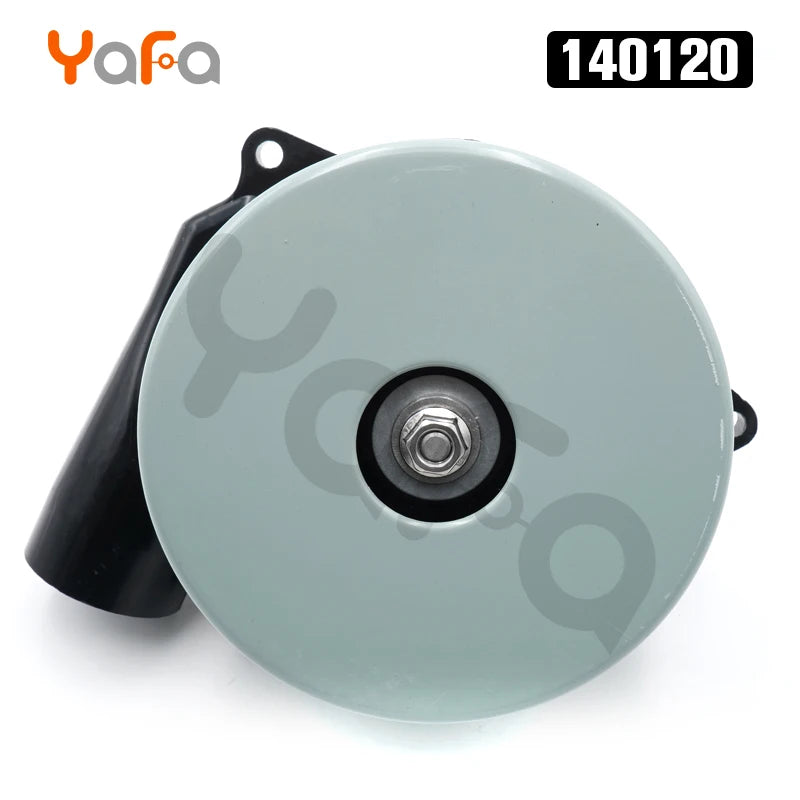

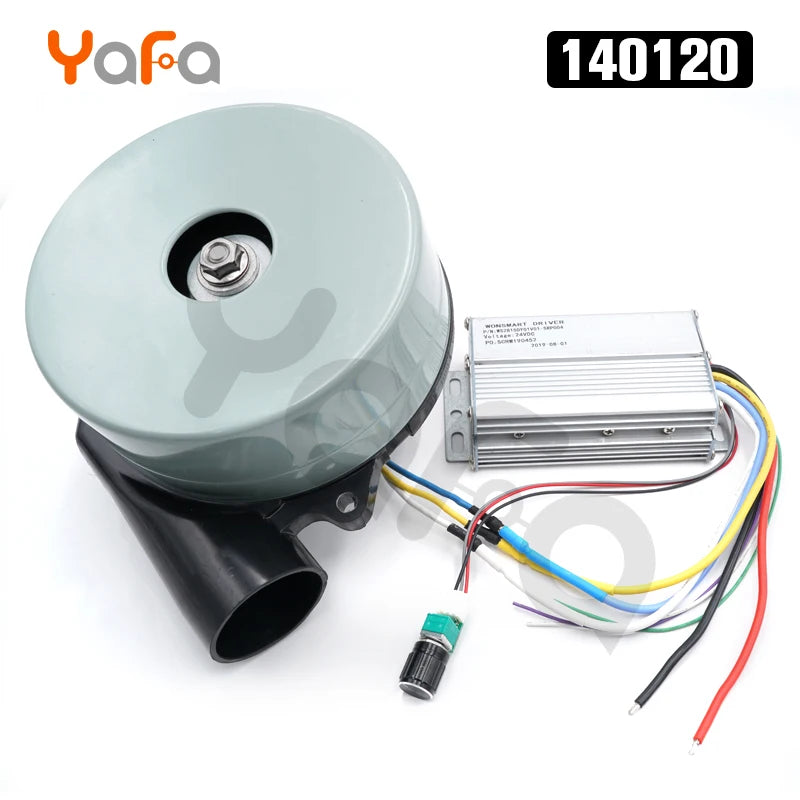

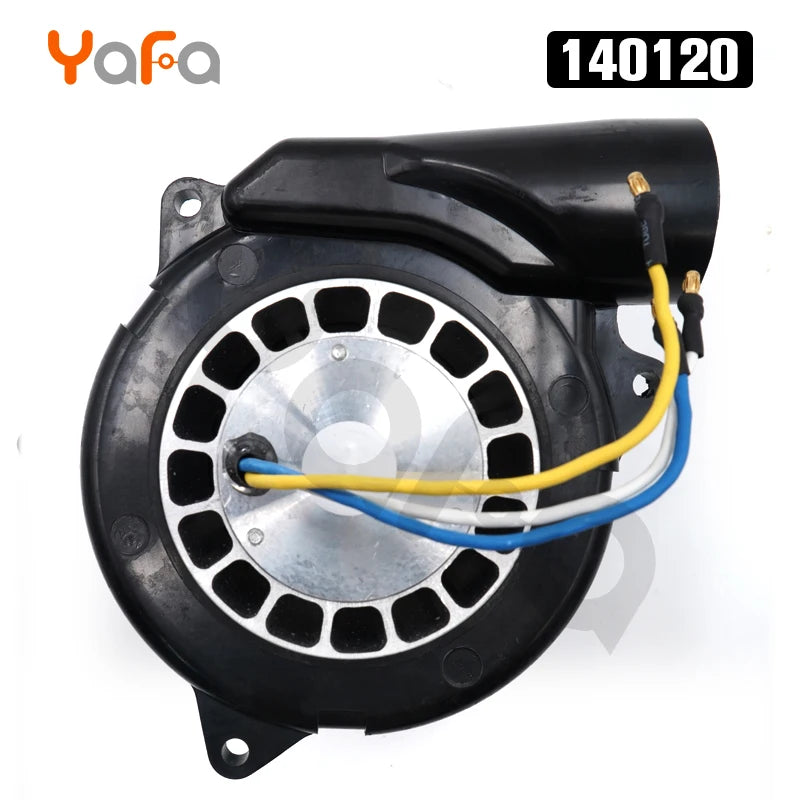

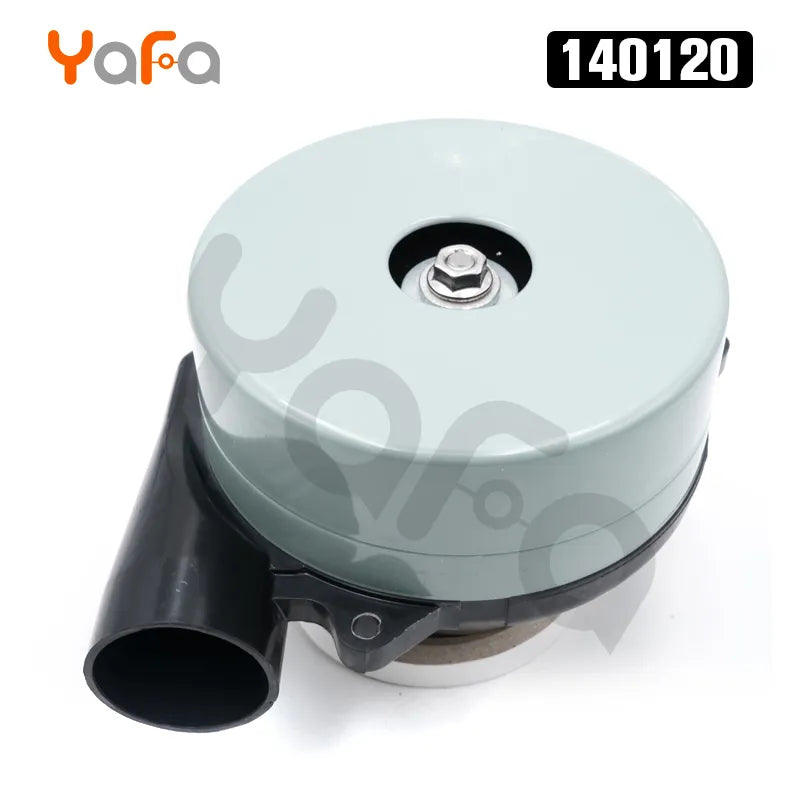

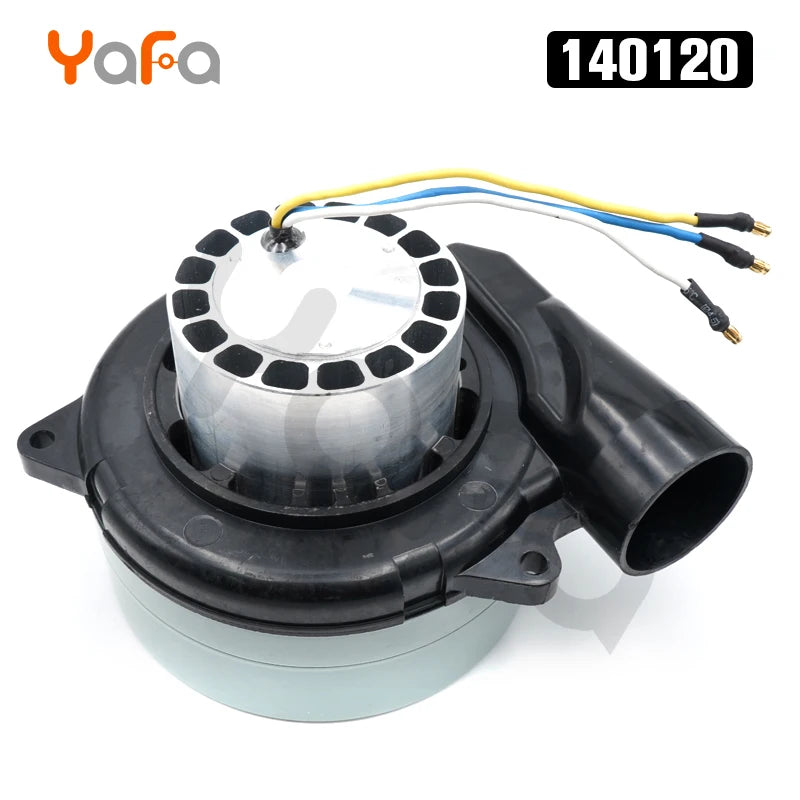

140120 DC 24V/48V High Pressure Brushless Blower - High Speed Motor Vacuum Fan

Brand Name: CNYAFA
Origin: Mainland China
Power Source: DC
Motor type: Brushless
Pressure: High Pressure
Rated Power: 300W
Rated Voltage: 48V
Usage: Commercial Manufacture
is_customized: Yes
Model Number: WS140120-48-130-X200
Application: Air Blower
Wattage: Under 500W
Type: Turbo Blower
Voltage: 48VDC centrifugal air blower
Speed (open): 13000 RPM
Current (open): 6.5A
Air flow (open): 80m3/h
Speed (sealed): 16000 RPM
Current (sealed): 3.7A
Air pressure (sealed): 12.5KPa
Motor Pole Paris: 2
Resistance--phase to phase: 1Ohm
Motor type: Three phase brushless
Bearing type: NMB ball bearing
Dielectric strength: 500VDC for 1 min
Insulation class: Class F
Protect class: IP54
Operating temperature range: Temp. -20 to +50 deg.C (No condensation)
Service life: 10000hrs(40 C degree rated operation point)
Hall effect sensor: 120

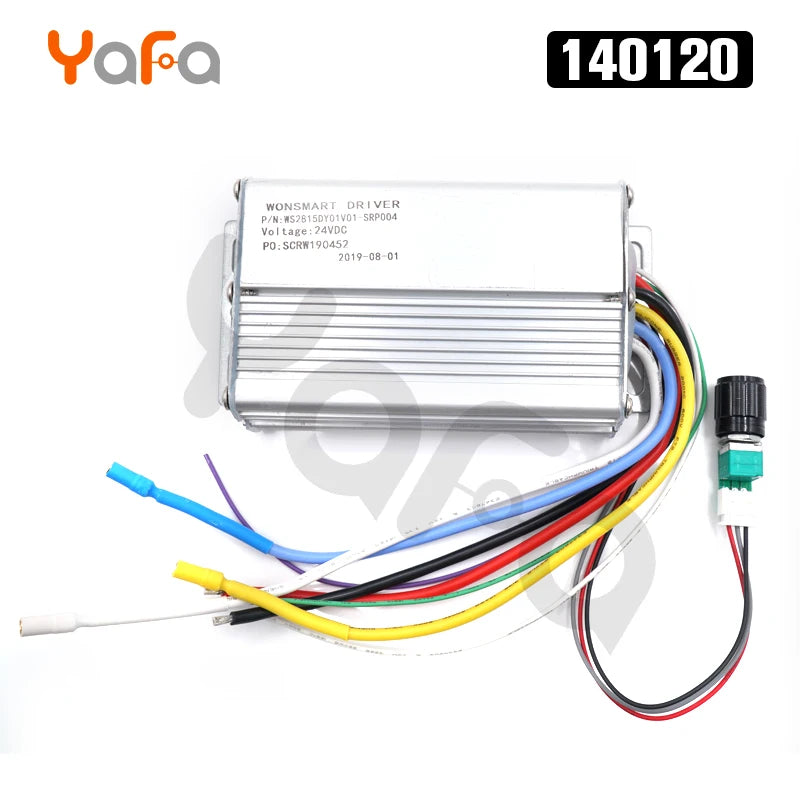

Driver type: WS4807DY02V04-SRP008
Application: Vacuum cleaner suction equipment air cooling equipment
Material: Aluminium alloy
Noise: 85dBA
Winding type: Delta
