SPECIFICATIONS

Application: LASER CUTTING

Brand Name: NoEnName_Null

CNC or Not: NO

Condition: New

Configuration: 3-axis

Control Software: Ruida

Cooling Mode: WATER COOLING

Core Components: Motor, Pump

Cutting Area: 900MM*1300MM

Feature: Water-cooled

Function: Engraving Cutting Nonmetal Materials

Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP

Hign-concerned Chemical: None

Key Selling Points: High-accuracy

Laser Source Brand: RECI

Laser Type: CO2

Laser head: Single

Laser power: 130W-150W

Laser tube: BeiJing RECI

Machinery Test Report: Provided

Mode of Operation: continuous wave

Origin: Mainland China

Place of Origin: Guangdong, China

Products handled: Tube

Servo Motor Brand: Leadshine

Video outgoing-inspection: Provided

Warranty: 1 Year

Warranty of core components: 1 Year

Weight (KG): 400 KG

Working area: 1300*900mm

Dear customer, the product weight is too heavy. The shipping costs shown are not accurate, please contact customer service for details.



The Pinnacle of Quality, The King of Functions
80W / 100W / 130W / 150W non-metal environmentally engraving & cutting solution

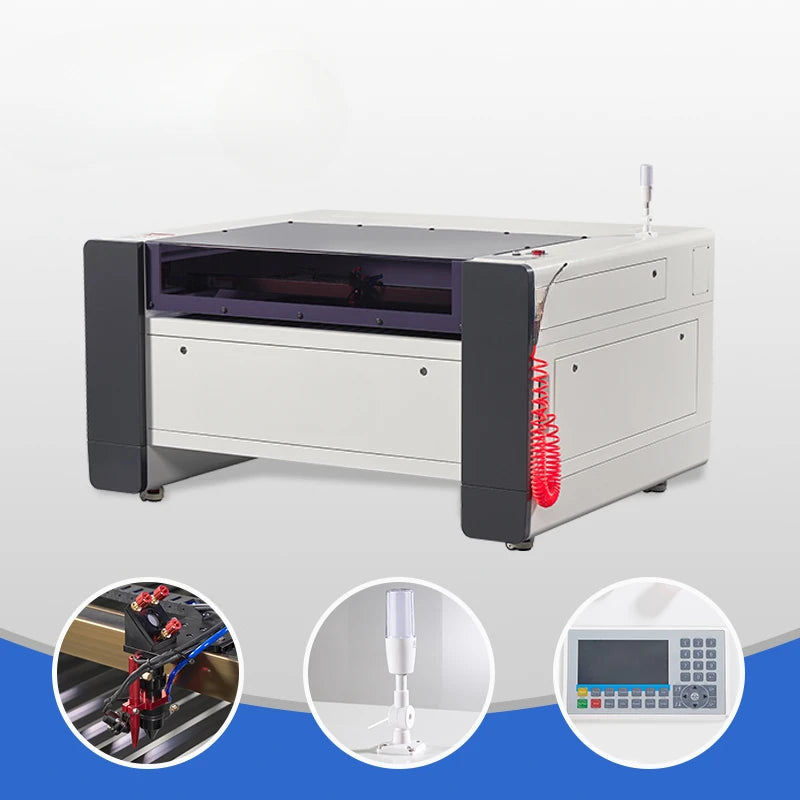

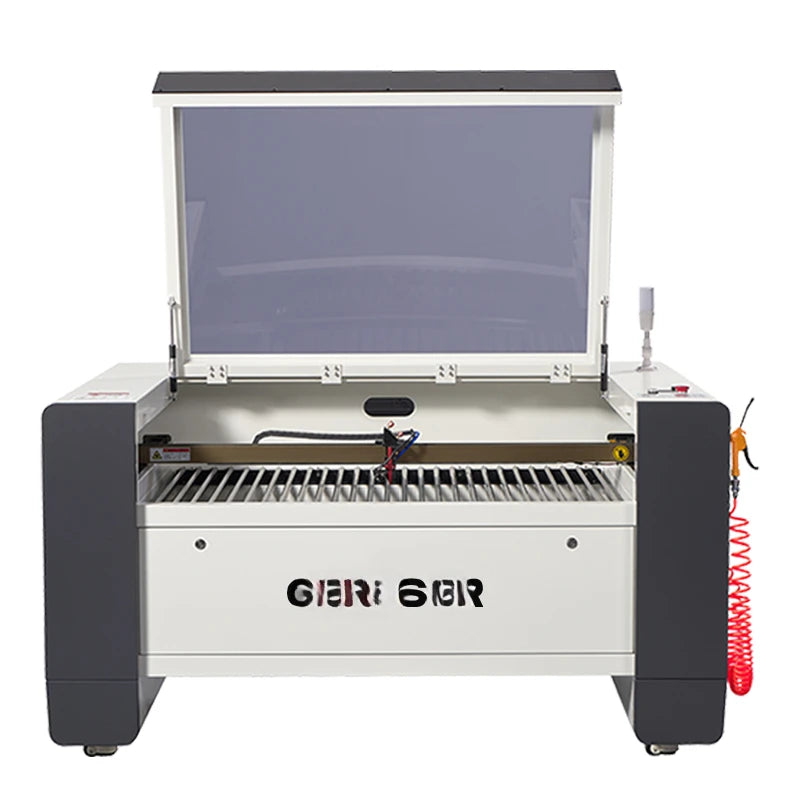

QD-1390i laser engraving machine is a fireproof model developed for production safety.

Processing industry and materials:

Suitable for high-precision high-gloss organic materials/acrylic products cutting related industries, advertising, lighting industry, photo frame woodworking industry, architectural model industry, crafts, decoration industry, clothing proofing, leather industry, shoes industry, furniture industry, packaging and printing industry, craft and gift industry, etc.

Advantage

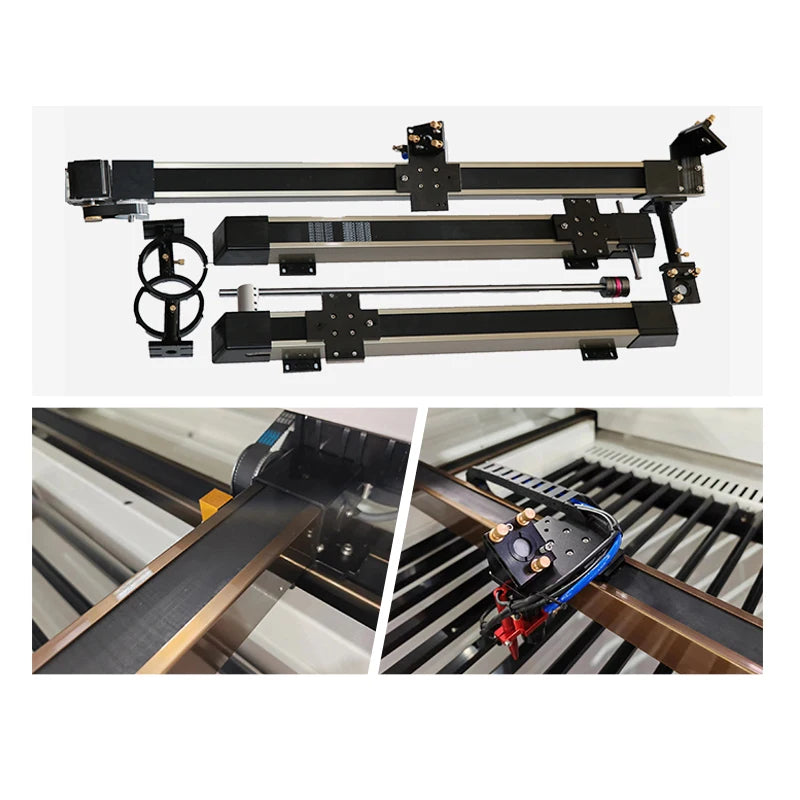

* Transmission structure

High precision slider group transmission structure, improve the motion performance and accuracy of the machine; 40mm belt and fully enclosed beam make the traction of the machine more uniform, higher stability, dust-proof and noise-free.

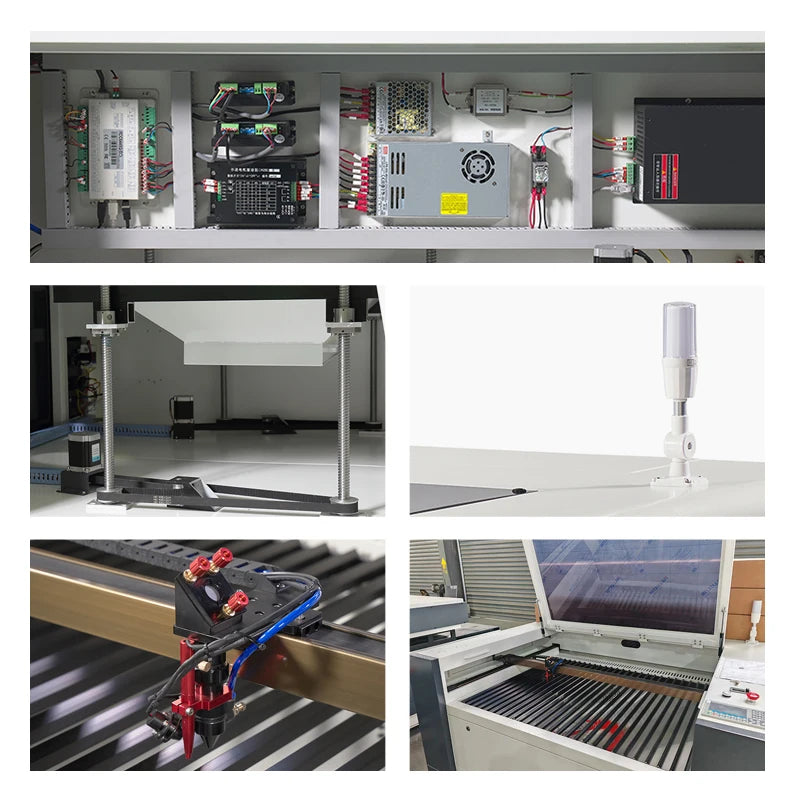

* Fire protection system
The machine has added intelligent fire prevention module and induction probe to prevent material burning in time and effectively. The whole system includes fire prevention module, induction probe, gas pipe, 600W air compressor, oil-water separator, air gun and operation indicator to ensure the safe operation of the machine.

* Sturdy
The 2mm thick body is designed in strict accordance with the principles of mechanics, so that the rigidity and stability of the machine are sublimated perfectly. The net weight of the machine is 400KGS.

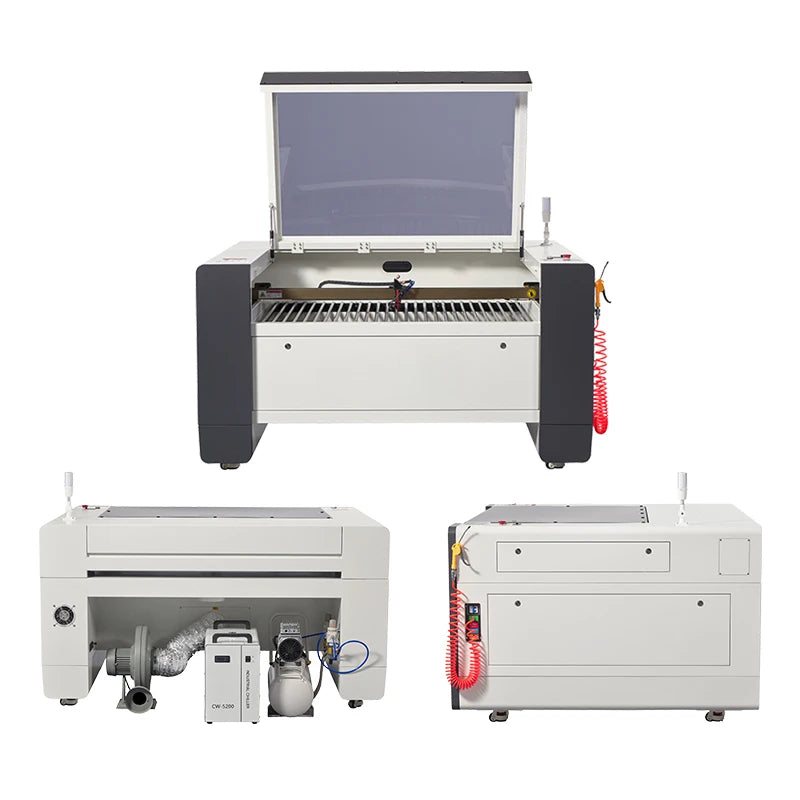

* Split structure design:
The body split structure design saves transportation space and reduces transportation costs (containers can be stacked in
three layers). Built-in bed structure reduces footprint by one third.

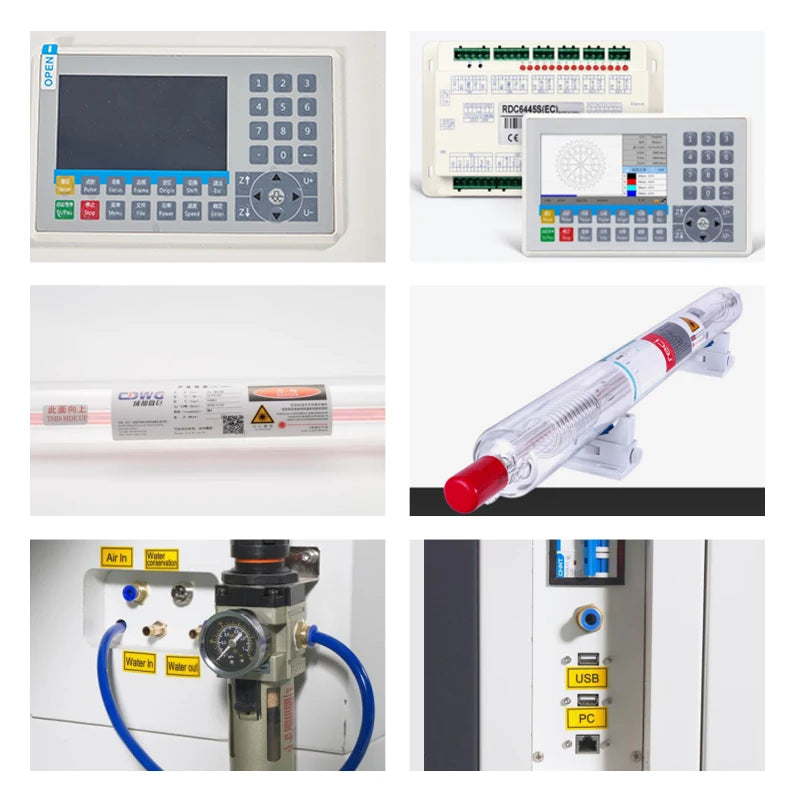

* Hydroelectricity separation:
The external circuit of the machine and the external water pipe and air path of the machine are separately installed on the left and right to prevent the circulating water of the machine from contacting the circuit, and the safety factor is higher.





Our Certifications

Our Service

1. 24-hour online service

2. 1-year warranty of Almost laser parts

3. Delivery on time and excellent after-sales service.

4. Every product will be tested before the delivery.

5. Lifetime technical support for you.
